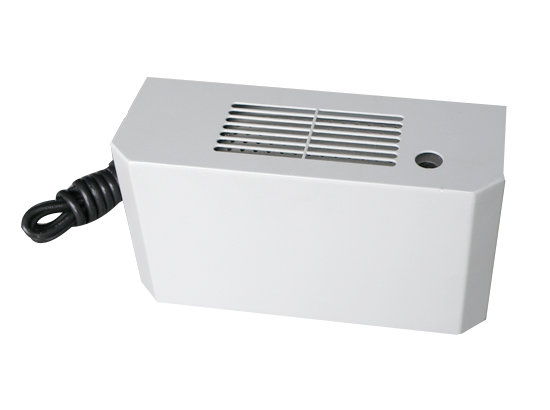

QYSKJ05-----冷凝水蒸发器




产品描述:
       蒸发器系与本公司生产的机柜空调配套使用,用于冷凝水的收集蒸发。
使用说明:
      使用时将空调的冷凝水出口接一根塑料水管,另一端插入蒸发器的水管孔即可,注意水管一定要插入到蒸发器里面的不锈钢水箱内.


订货型号:QYSKJ05;工作电压220V;额定功率500W;冷凝水最大蒸发器>500ml/h;控制方式:自动;外形尺寸286mm长*100mm宽*120mm高。

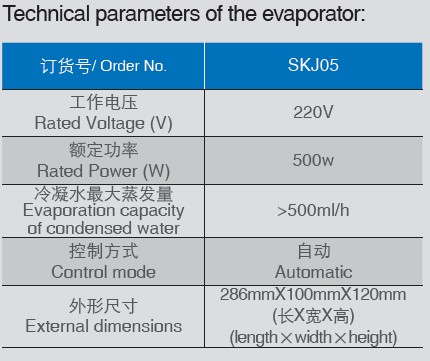

蒸发器技术参数:

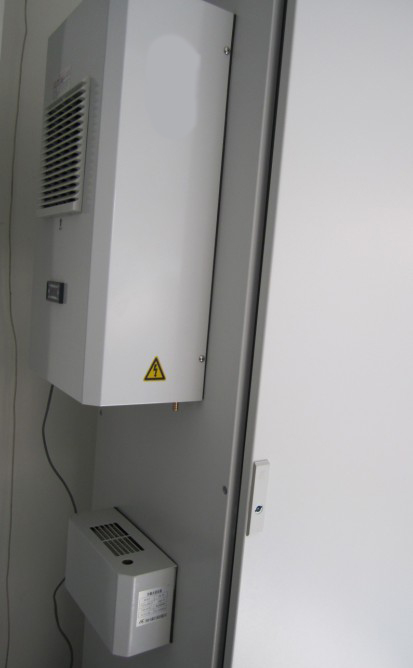

1.安装方式:可安装在空调机下方的侧面,应尽量远离空调.蒸发器工作时会产生较大量水蒸气,以免在空调底部结露.如空间不够,也可直接放置于地上.当放置在地上时,应注意防止人员踢到,以免热水溅出伤到人员.
Installation mode: can be installed at the side under the air conditioner and keep it as far as possible from it so as to avoid dew fall at the bottom of the air conditioner as large amount of vapor will be generated when the evaporator works. It can be installed directly on the ground if the space is insufficient. When installing it on the ground, take care not to kick it so as not to get injured by the spilling hot water.

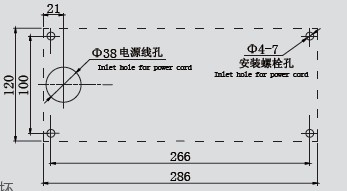

2.蒸发器安装在机柜上的开孔尺寸:
Opening size for installation of evaporator on the cabinet:
注意事项:Caution notes:
a. 蒸发器有液位传感器自动控制,通电时请水平放置蒸发器,勿将其倒置,以免电热管干烧而损坏.
The evaporator has automatic control of liquid level sensor, please place the evaporator levelly when powering on, do not turn it upside down otherwise the electric heating tube will be dry heated and damaged.
b. 蒸发器工作时禁止手放在出汽口上方,以免烫伤.
Prohibit placing the hand above the venthole when the evaporator works so as not to get scalded.
c. 大功率空调冷凝水比较多,可选用蒸发量大一号的蒸发器.
The large power air conditioner will generate more condensed water, better select the evaporator with one gage larger evaporative capacity.
d. 定期清洗.延长使用寿命.
Make regular rinse to lengthen its service life.


QYSKJ05-----冷凝水蒸发器




产品描述:
       蒸发器系与本公司生产的机柜空调配套使用,用于冷凝水的收集蒸发。
使用说明:
      使用时将空调的冷凝水出口接一根塑料水管,另一端插入蒸发器的水管孔即可,注意水管一定要插入到蒸发器里面的不锈钢水箱内.


订货型号:QYSKJ05;工作电压220V;额定功率500W;冷凝水最大蒸发器>500ml/h;控制方式:自动;外形尺寸286mm长*100mm宽*120mm高。


蒸发器技术参数:



1.安装方式:可安装在空调机下方的侧面,应尽量远离空调.蒸发器工作时会产生较大量水蒸气,以免在空调底部结露.如空间不够,也可直接放置于地上.当放置在地上时,应注意防止人员踢到,以免热水溅出伤到人员.
Installation mode: can be installed at the side under the air conditioner and keep it as far as possible from it so as to avoid dew fall at the bottom of the air conditioner as large amount of vapor will be generated when the evaporator works. It can be installed directly on the ground if the space is insufficient. When installing it on the ground, take care not to kick it so as not to get injured by the spilling hot water.
2.蒸发器安装在机柜上的开孔尺寸:
Opening size for installation of evaporator on the cabinet:
注意事项:Caution notes:
a. 蒸发器有液位传感器自动控制,通电时请水平放置蒸发器,勿将其倒置,以免电热管干烧而损坏.
The evaporator has automatic control of liquid level sensor, please place the evaporator levelly when powering on, do not turn it upside down otherwise the electric heating tube will be dry heated and damaged.
b. 蒸发器工作时禁止手放在出汽口上方,以免烫伤.
Prohibit placing the hand above the venthole when the evaporator works so as not to get scalded.
c. 大功率空调冷凝水比较多,可选用蒸发量大一号的蒸发器.
The large power air conditioner will generate more condensed water, better select the evaporator with one gage larger evaporative capacity.
d. 定期清洗.延长使用寿命.
Make regular rinse to lengthen its service life.
